SOLAR-POWERED CHEMICAL INJECTION PUMP
Pneumatic Chemical Metering Pump was designed with the well pumper and the chemical man in mind. Each pump has a simple but rugged design that can be repaired in the field within minutes on the tailgate of a pickup truck.
► 316 SST wetted parts
► TFE o-rings in both checks
► Sealed lube system
► Timer/controller that will turn down to
The Model 4000 Solar-Powered Chemical Injection Pump, released in 2009, is quickly gaining acceptance among customers and gaining recognition for its simplicity and durability. 12VDC and 120VAC models available!
Our Model 4050 Solar-Powered Methanol Pump (patent pending) utilizes temperature sensing controls which enable operators to significantly reduce methanol consumption while still offering maximum freeze protection.
► Variable-speed (continuous run) or constant-speed (on-off) operation
► All 316 SST wetted parts (except plunger)
► 3/16”, 1/4", 3/8”, and 1/2" plunger sizes
► Single or dual pump configuration options
► Standard V-ring packing
► Pumping capacity from 0.25 to 130 GPD
► Continuous duty, high efficiency motor

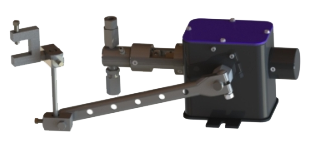

Introducing the Timberline Model 4100 chemical injection pump is designed to reliably deliver chemical by utilizing the movement of a walking beam pumping unit. Timberline Manufacturing is committed to delivering a high quality product designed to provide years of reliable service with minimal maintenance requirements.
► Ratchet Teeth and Pawl Hardened for Extended Life
► Reversible Pawl Doubles the Pump Life Expectancy
► Zinc Plated Steel Arm
► Dual Head Optional for Dissimilar Fluids or Increased Volume
► Oil Impregnated Bronze Bushings
► Teflon Seats in Suction and Discharge Checks Provide Positive Sealing
► V Ring Packing
► All 316 SST Wetted Parts
► Large Bodies Make O-rings, Ball, and Spring Easily Accessible for Simple,
WALKING BEAM PUMPS
